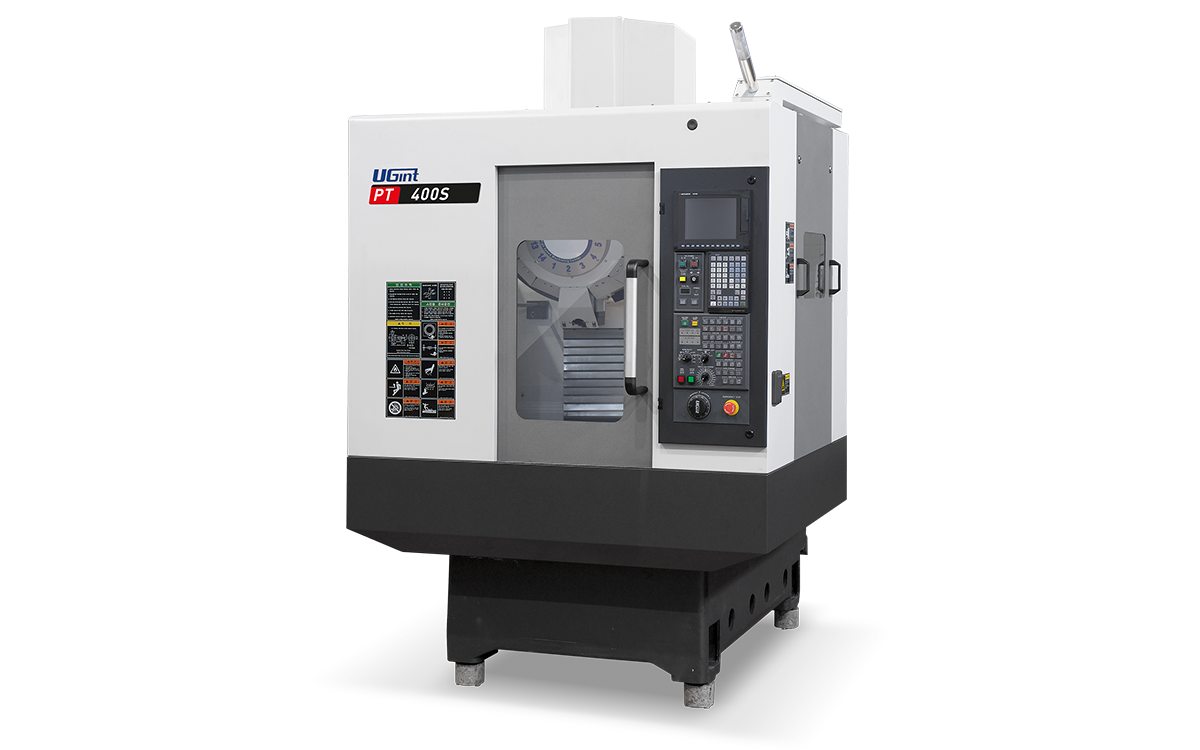

PT 400S

Korea's first
24,000RPM SpindleThe realization of the highest speed acceleration
in the same class Z axis acceleration 2.0G
Video

Equipped with high precise and high speed spindle
UGINT applied the self-developed 24,000 RPM spindle on the machine 1st in Korea and 2nd in the world which makes high speed and high precise machining. So UGINT achieved the high productivity and high precise machining.

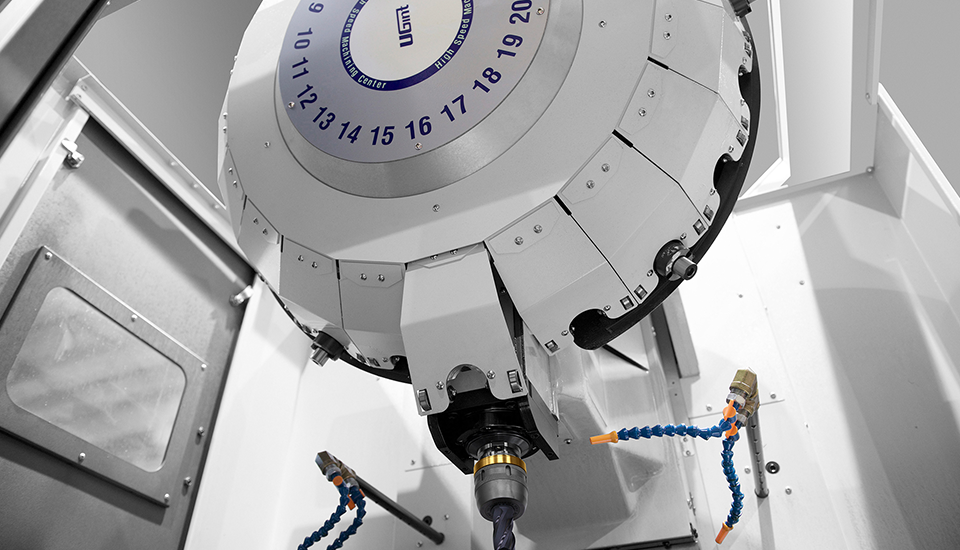

Applied with the self-developed high performance ATC
The self-developed high performance ATC is equip with 14 tools turret type as standard and max. 24 tools. So it achieved the best performance in the stable machining for high precision parts.

The ultra-high speed servo response (60m/min)
The productivity is improved up to 30% in the rapid traverse area by UGINT's technology
Specifications
Machine specifications and functions are subjected to change without notice.
[ ] Options
Items
- Travel
- X axis travel
- Y axis travel
- Z axis travel
- Traverse
- X axis rapid traverse
- Y axis rapid traverse
- Z axis rapid traverse
- Spindle
- Max. spindle speed
- Max. spindle power
- Max. spindle torque
- Spindle taper
- Table
- Table length
- table width
- Max load weight
- Machine size
- Length
- Height
- Width
- Weight

PT 400S
Armless
Twin Arm
- 520 mm
- 400 mm
-
350 mm
480 mm
- 60 m/min
- 60 m/min
- 60 m/min
- 24,000 rpm
- 3.7/2.2 kW
- 17.7 N.m
- NT #30
- 620 mm
- 390 mm
- 150 kg
- 1,560 mm
-
2,443 mm
2,532 mm
- 2,115 mm
- 2,850 kg
